Medical equipment cooling BUSCH air-cooled screw chiller

HS Code:8418699090
Medical equipment cooling BUSCH air-cooled screw chiller
Model:BBA-290SH
Cooling capacity:290 kW / 82.5 RT
Heating capacity:325 kW / 92.4 RT
Whole unit power input:91.1 kW
Whole unit current power:159.4A
Compressor type:5-6 asymmetric semi enclosed twin screw compressor
Start-up：Y-Star delta starting
Energy regulation：0-25%-50%-75%-100% or Stepless regulation
Evaporator water flow：49.9m3/h
Evaporator tube diameter:DN 100
Fan quantity:6 sets
Single fan power:1.10 kW
Condenser air volume:110200 m3/h
Refrigerant charge:75.0 kg
Size:3200mm*2200mm*2300mm
Weight:3100 kg
Power standard:380V/415V/440V/-3P-50Hz/60Hz
Refrigerant:R22/R407C/R134a
Non-standard product and design:Acceptable

Screw air-cooled chiller(or heat pump)
Screw air-cooled chiller(heater) is the unit of which applicable cooling(heating) medium is air or water in summer(winter), and its secondary refrigerant is water. When connected with fan coil units, air conditioning box, air processor together, it can be used as half of concentration and centralized the central air conditioning system; Single cold- screw air-cooled chillers are widely used in various fields of refrigeration industry.

air cooled chiller

air chiller

industrial chiller

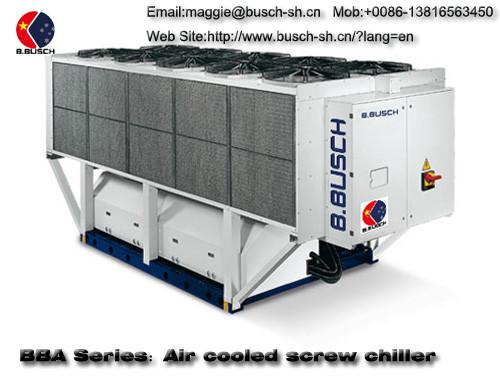

Medical equipment cooling BUSCH air-cooled screw chiller Images
